Description

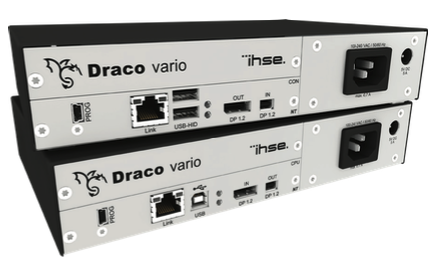

Features of the 493 Series KVM Extender for DisplayPort 1.1
- Can be configures as Dual Head or SingleHead
- DisplayPort 1.2
- Dual Head resolution up to 4096×2160@30Hz
- Dual Head resolution up to 1920×1200@60Hz
- DP Full Size (Primary) DP mini-port (Secondary)
- Low power consumption
- USB-HID for mouse/keyboard
- Compatible with all Ultra series of extenders
- Option – USB 2.0 add-on card
- Option – Analog or Digital Audio
- Option – RS-232 or RS-422 serial interface
- Available in copper or fiber data path connections
- Fits all Draco vario chassis types – optional redundant power available
Technical Specifications for the 493 Series KVM Extender for DisplayPort 1.1
Input: DisplayPort 1.1 (Primary Full Size, Secondary mini-DP)
Output: DisplayPort 1.1 (Primary Full Size, Secondary mini-DP)
|
Resolutions Single Head |
1920 x 1080 @ 120 Hz (reduced blanking) 1920 x 1200 @ 120 Hz (normal blanking) 2560 x 1440 @ 60 Hz (normal blanking) 3840 x 2160 @ 30 Hz – UHD 4096 x 2160 @ 30 Hz – 4K DCI Stereo Linear Pulse Code Modulation (LPCM), DTS, DTS-HD (5.1), Dolby Digital, Dolby Digital Plus (5.1) |
|
Resolutions Dual Head |
2X – 1920 x 1080 @ 60 Hz (reduced blanking) |
|
Cable Links |
Cat X: 140 m (459 ft) |
|
USB |
USB-HID (standard for keyboard / mouse) |
(option) RS-232 (option) Audio – Analog (option) Audio- Digital
UP TO 115200 / +/- 5V, CTS, DTR HANDSHAKE
Bi-directional stereo audio, 24bit, 38.4kHz
Compatible with AES/EBU, S/PDIF, Dolby Digital, DTS, PCM, 32-96kHz
