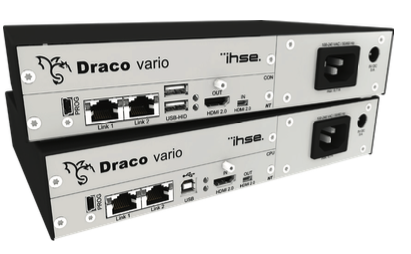

495 SERIES: KVM Extender for HDMI 2.x
The Draco vario ultra HDMI 2.0 extender enables the operation of CPUs from a remotely located workstation including HDMI monitor, keyboard and pointing device over a duplex LC fiber connection. Transfer of fully- digital video is supported in 4K resolutions up to 4096 x 2160 and 3840 x 2160 at a real 60-Hz refresh rate and color depth (24 bit, 4:4:4 or 30 bit, 4:2:2). The KVM extender also supports audio transmission via the HDMI interface. Integration of optional Draco vario add-on modules for digital audio input and output as well as data signals, such as USB 2.0 and RS232 is also possible. For a direct video access in the server room, the CPU Unit includes a local output to connect a control monitor. At the same time there is a local input on the CON Unit to connect a locally connected source (switchable).
Features of the 495 Series KVM for HDMI 2.x
- HDMI 2.0
- USB-HID for keyboard/mouse
- Lockable HDMI cable connector
- Local output on CPU (micro HDMI)
- Local input on CON (micro HDMI)
- Compatible with Ultra Series
- Option - Redundant data links
- Option – USB 2.0 add-on card
- Option – Analog or Digital Audio
- Option - RS-232 or RS-422 serial interface
- Available in copper or fibre data path connections
- Fits all Draco vario chassis types – optional redundant power available
Technical Specifications of the 495 Series KVM for HDMI 2.x
Input: HDMI 2.0 w/embedded audio
Output: HDMI 2.0 w/embedded audio
|
Resolutions |
1920x1080 @240Hz |
|
Cable Links |
Cat X (3G only) : 100 m |
|
USB |
USB-HID (standard for keyboard / mouse) |
(option) RS-232 (option) Audio - Analog (option) Audio- Digital
UP TO 115200 / +/- 5V, CTS, DTR HANDSHAKE
Bi-directional stereo audio, 24bit, 38.4kHz
Compatible with AES/EBU, S/PDIF, Dolby Digital, DTS, PCM, 32-96kHz
